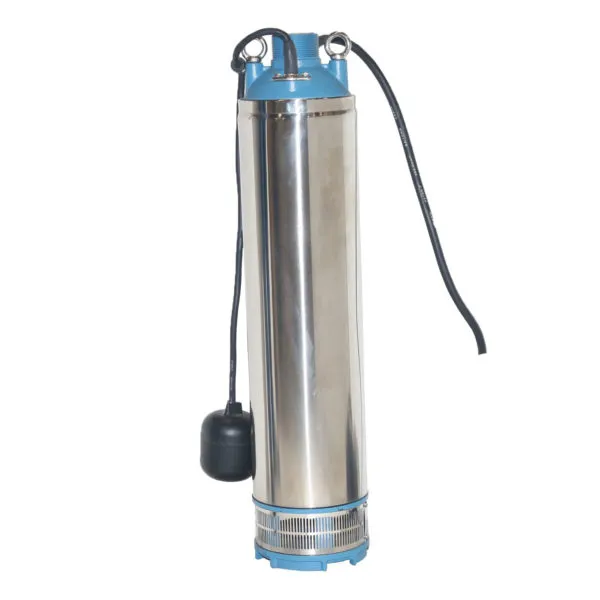

Applications: For water supply from open wells, tanks or reservoirs. For domestic use, Civil and industrial applications. For garden and irrigation, Utilization of rain water Specification: Head :49 Mtr Flow : 350 LPM Power : 2 KW / 3 HP Insulation Class: F Protection Class : IP 68 Cable length : 15m with Float switch Minimum Immersion depth : 150mm Water temperature up to 40°C Minimum Internal diameter of well : 155m Power supply : 220-240v Single Phase 50 Hz Function and feature: Single phase with built-in capacitor and thermal protector on control box required Three phase with built-in thermal protector. Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current. Close coupled multi-stage submersible pump in chrome –nickel stainless steel. Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed. Double shaft seal with interposed oil chamber. The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.
